65 77 604 Replacing seat occupancy mat for front passenger seat occupancy detector
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CDN front passenger seat (with CIS mat) only:
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
After fitting seat cover, enable CIS mat with BMW DIAGNOSIS SYSTEM .
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
After fitting seat cover, enable CIS mat with BMW DIAGNOSIS SYSTEM .
Necessary preliminary tasks:
- Remove seat cover for front passenger seat. Refer to 52 14 403 REPLACING SEAT COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) (UP TO 09/09) , 52 16 403 REPLACING SEAT COVER FOR FRONT PASSENGER SEAT (SPORTS, 09/09 ON) or 52 17 403 REPLACING SEAT COVER FOR PASSENGER SEAT (COMFORT) (FROM 09/09) .
NOTE:
Graphic is an example.

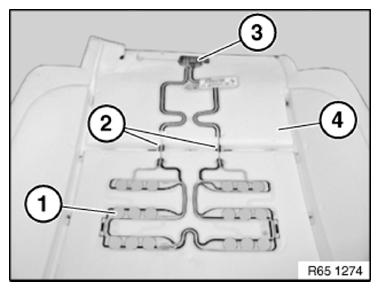

Pull seat occupancy mat (1) off front passenger seat upholstery (4) and feed out connector housing (3).
Installation note:
- To avoid malfunctions, make sure seat occupancy mat (1) is cleanly laid:
- Lay connector housing (3) in designated recess
- Lay seat occupancy mat bridges (2) cleanly and feed into designated recesses
- Secure seat occupancy mat (1) to bonding surface
- Lay seat occupancy mat (1) straight and without kinks
