52 16... Removing or installing thigh support mechanism at left or right front seat (sport, electrical)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove seat cover . See 52 16 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (SPORT, ELECTRICAL) or 52 16 404 REPLACING SEAT COVER FOR FRONT PASSENGER SEAT (SPORT, ELECTRICAL) on front seat

Move thigh support (1) all the way forward.

Unlock top thigh support mechanism (1) in marked area:

First unlock thigh support mechanism in the middle.
Pull thigh support mechanism toward the front while unlocking the left and right side at the same time.

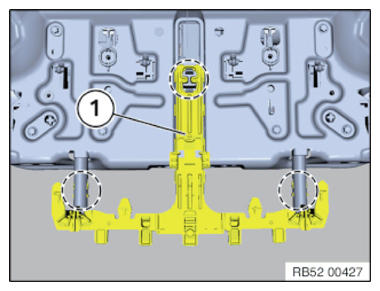

Fig 1: Identifying Top Thigh Support Mechanism In Marked Area
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove bottom thigh support mechanism (1).

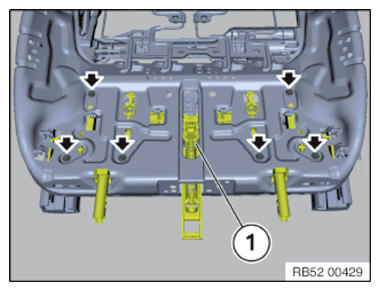

Fig 2: Locating Bottom Thigh Support Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
