52 14 422 Replacing padding for driver's seat backrest

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest cover . See 52 14 407 REPLACING BACKREST COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) , 52 17 407 REPLACING BACKREST COVER FOR DRIVER'S SEAT (COMFORT) or 52 16 407 REPLACING BACKREST COVER (SPORT) FOR DRIVER'S SEAT

Remove dividing net (1) towards top.

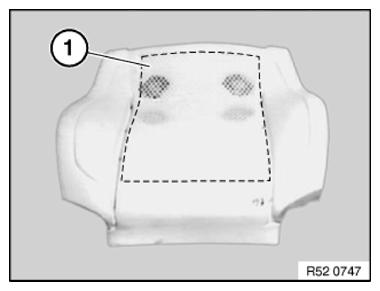

Fig 1: Identifying Backrest Cover And Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

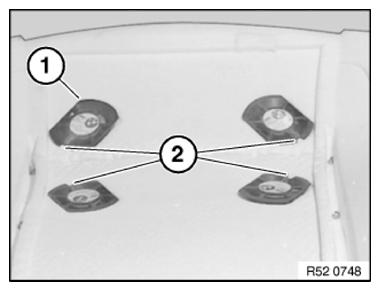

Fig 2: Identifying Fans And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
