52 14 405 Replacing backrest cover for left or right front seat (normal, electrical)

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove INNER COVER ON FRONT SEAT
• Remove OUTER COVER ON FRONT SEAT
• Remove REAR PANEL ON FRONT SEAT BACKREST
• Remove SIDE AIRBAG

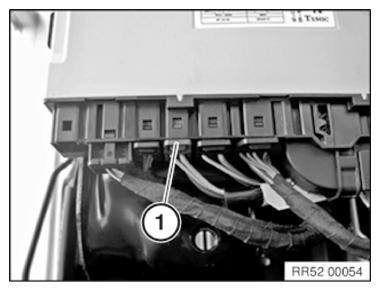

Unlock plug connection (1) for seat heating and disconnect.

Feed out cable from seat mechanism.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

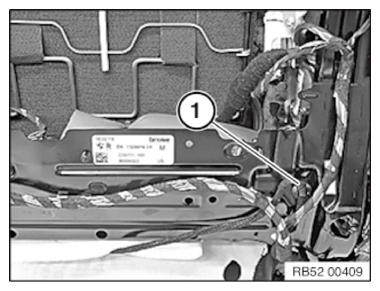

Unclip cable clip (1) from backrest frame.

Fig 2: Identifying Cable Clip From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from bracing cloth.

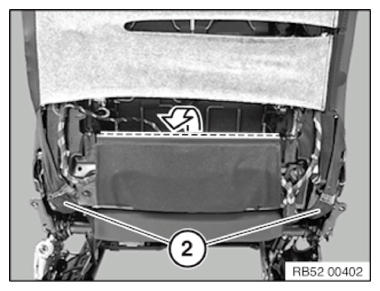

Release the backrest cover (2) on the left and right.

Carefully slide bracing cloth with foam through backrest gap and seat structure.

Installation note:

Make sure foam and bracing cloth are correctly fitted (free of kinks or folds).

Fig 3: Releasing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

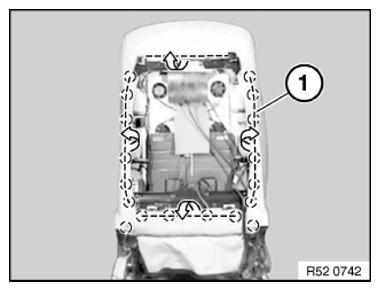

Detach backrest cover (1) from the metal tabs in the upper area.

Detach welt (2) from the backrest cover in the marked area.

Detach backrest cover with padding upwards from backrest frame.

Fig 4: Detaching Backrest Cover From Metal Tabs In Upper Area

Courtesy of BMW OF NORTH AMERICA, INC.

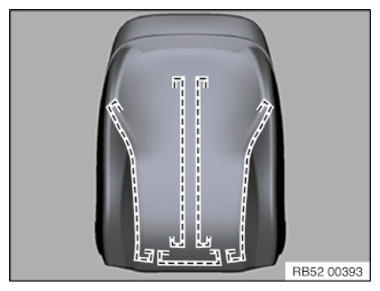

Release all clamps in marked area of trim wires.

Remove backrest cover from upholstery.

Fig 5: Identifying Backrest Cover In Marked Area Of Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

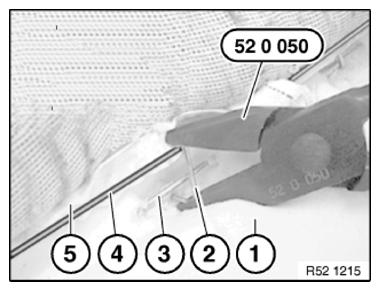

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Welt in seat cover
5. Backrest cover
   Fig 6: Inserting Clamp With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.
