52 14 390 Removing and installing/replacing left or right front head restraint (normal, electrical)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lever out retaining clips (1)

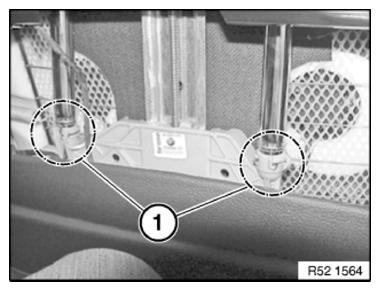

Fig 1: Locating Retaining Clips
G09927358Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

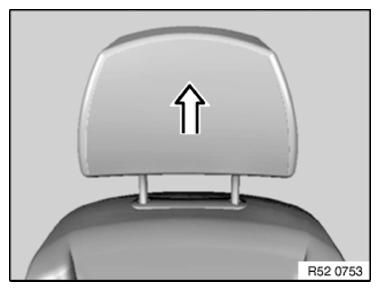

Fig 2: Lifting Head Restraint
G09927359Courtesy of BMW OF NORTH AMERICA, INC.
