52 14 050 Replacing lumbar support on front seat (standard, electric) on left or right

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest

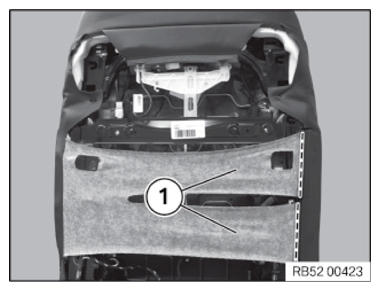

Detach backrest cover (1) in the marked area.

Fig 1: Identifying Backrest Cover In Marked Area

G09927432

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from backrest cover (1).

Fig 2: Detaching Welt From Backrest Cover

G09927433

Courtesy of BMW OF NORTH AMERICA, INC.

Press latch mechanism and slide valve body (1) in direction of arrow.

Installation note:

Ensure correct fit of valve body (1) in backrest frame.

Fig 3: Fitting Valve Body In Backrest Frame

G09927434

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release clamps (2).

Disengage drive unit (3) and valve body (4).

Fig 4: Identifying Drive Unit, Valve Body, Clamps And Plug Connections

G09927435

Courtesy of BMW OF NORTH AMERICA, INC.

Detach tabs (1) of lumbar support (2).

Carefully feed out lumbar support (2) in downward direction between spring wire and backrest padding.

Remove lumbar support (2) complete with drive unit and valve body.

Installation note:

Check lumbar support (2) for damage.

Ensure correct fit of tabs (1) on marked spring wires.

Air hoses must not be kinked.

Fig 5: Locating Tabs On Marked Spring Wires

G09927436

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a FUNCTIONAL CHECK .
