52 14 010 Removing and installing/replacing both seat rails on left or right front seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE
Remove lower strap . See 72 11 071 REMOVING AND INSTALLING/REPLACING FRONT LOWER BELT FITTING (BELT TENSIONER), PASSENGER SEAT or 72 11 070 REMOVING AND INSTALLING/REPLACING FRONT LOWER BELT FITTING (BELT TENSIONER), DRIVER'S SEAT (belt tensioner)
Remove COVERS FOR TOP RAIL

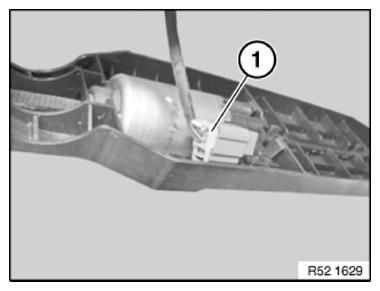

Unlock and disconnect plug connection (1) on drive unit for forward/back seat adjustment.

Fig 1: Identifying Plug Connection

G09927317

Courtesy of BMW OF NORTH AMERICA, INC.

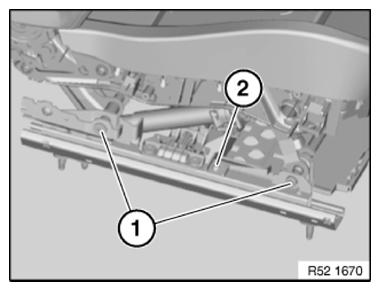

Release left and right screws (1).

Tightening torque 52 10 06AZ .

Release nuts (2) on left and right on carrier plate.

Remove seat rails with motor carrier plate.

Fig 2: Identifying Nuts On Left And Right On Carrier Plate

G09927318

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

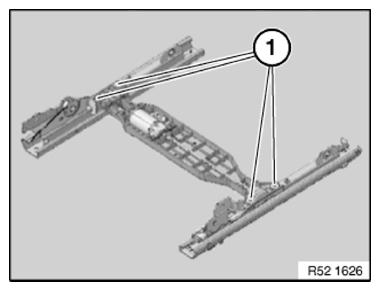

Release screws (1).

Fig 3: Identifying Motor Carrier Plate Screws

G09927319

Courtesy of BMW OF NORTH AMERICA, INC.

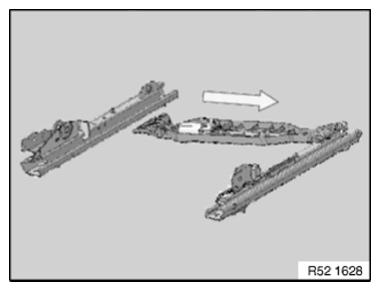

Detach left or right seat rail from flex-shaft.

Detach motor retaining plate with drive and flex-shaft from opposite seat rail.

Fig 4: Detaching Motor Retaining Plate With Drive And Flex-Shaft From Opposite Seat Rail

G09927320

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

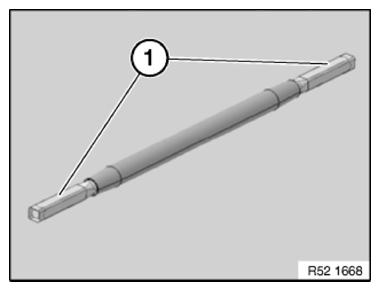

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

Fig 5: Identifying PTFE Hoses Shrink-Fitted Onto End Pieces

G09927321

Courtesy of BMW OF NORTH AMERICA, INC.
