67 31 X01 Removing and refitting/replacing backrest width adjustment motor

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE
Remove rear panel on front seat . See 52 14 198 REMOVING AND INSTALLING OR REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST or 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT)
Remove SIDE AIRBAG if necessary

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric In Marked Area

G09927304

Courtesy of BMW OF NORTH AMERICA, INC.

Fold seat fabric (1) slightly forwards as shown.

Drill out expanding rivet (2).

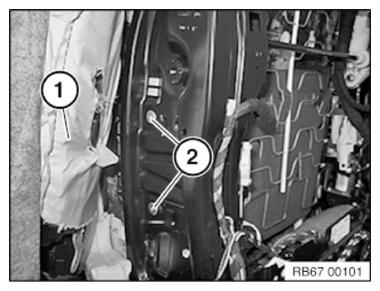

Fig 2: Identifying Seat Fabric And Expanding Rivet

G09928018

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove backrest width adjustment motor (2).

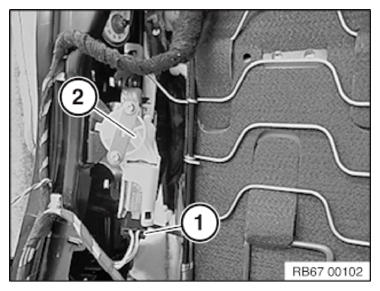

Fig 3: Identifying Backrest Width Adjustment Motor

G09928019

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement:

INITIALIZE seat height adjustment drive unit.
