67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

Pull backrest cover (1) in direction of arrow from sheet metal tabs (2).

Detach backrest cover (1) on both sides from backrest frame.

Lift cover with padding (1) in upper area over backrest frame.

Fig 1: Pulling Backrest Cover From Sheet Metal Tabs

G04742749

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 3AZ .

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

Fig 2: Identifying Drive Unit, Plug Connection And Screws

G05479216

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

Unfasten plug connection (1) and disconnect.

Unlock latch mechanism (2).

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

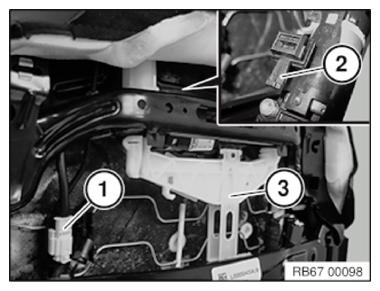

Fig 1: Identifying Drive Motor, Plug Connection And Latch Mechanism

G09927324

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
