52 17 035 Removing and installing/replacing transmission for backrest upper section adjustment

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both rear panels for front seat backrest . See 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST or 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT)

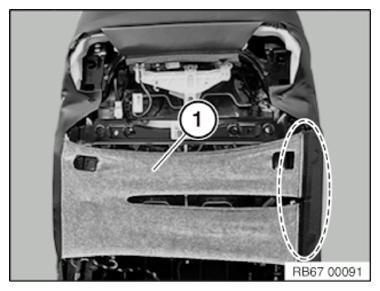

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric In Marked Area

G09927304

Courtesy of BMW OF NORTH AMERICA, INC.

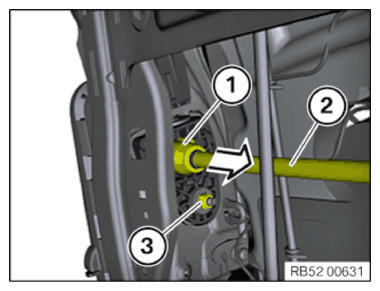

Unclip cover (1).

Pull shaft (2) from transmission for backrest upper section adjustment.

Release nut (3) and remove washer.

Installation note:

Make sure shaft (2) is correctly seated in associated fixture.

Fig 2: Pulling Shaft From Transmission For Backrest

G09928012

Courtesy of BMW OF NORTH AMERICA, INC.

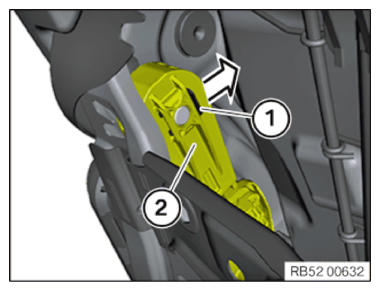

Pull out clamp (1).

Remove the transmission for the backrest upper section adjustment (2).

Fig 3: Pulling Clamp

G09928013

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

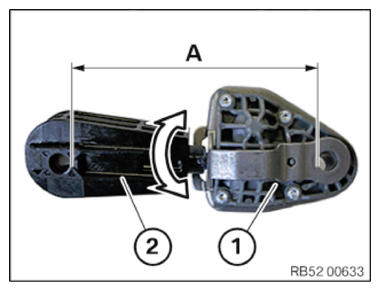

Measure dimension A of the removed transmission for the backrest upper section adjustment (1).

Measure dimension A by turning the fixture (2) on the new transmission for backrest upper section adjustment (1).

Fig 4: Measuring Dimension Of Removed Transmission For Backrest

G09928014
