52 17 034 Removing and installing/replacing shaft for backrest upper section adjustment

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both rear panels . See 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST or 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT)

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) inwards.

Pull shaft (2) out of drive and transmission and remove.

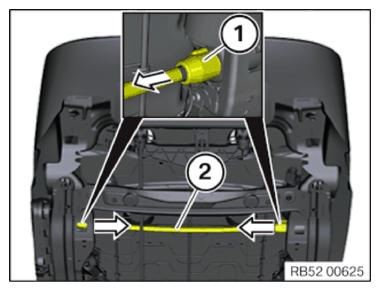

Fig 2: Pulling Shaft Of Drive And Transmission

Courtesy of BMW OF NORTH AMERICA, INC.
