41 14 531 Replacing Engine Support/Front Left Side Frame Connection (Front Left Wheel Arch Removed) (Non-Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Removing the engine support side frame connection:

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):

(1) Connection, wheel arch/entrance

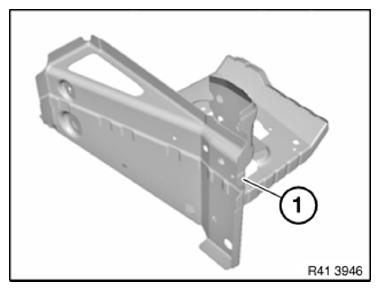

Fig 1: Identifying Wheel Arch/Entrance Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

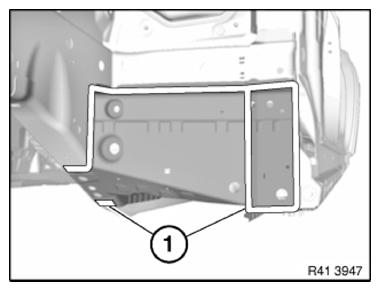

Fig 2: Identifying Engine Support Side Frame Welded Connections Areas

G09916084

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

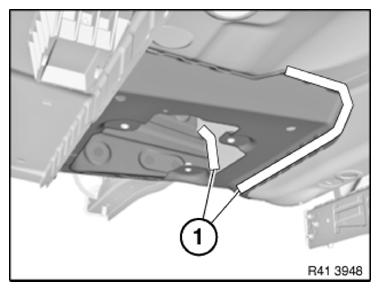

Fig 3: Identifying Engine Support Side Frame Welded Connections Areas

G09916085

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

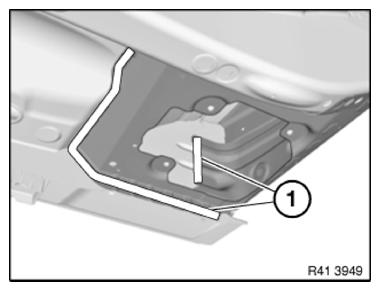

Fig 4: Identifying Wheel Arch/Entrance Welded Connections Areas

G09916086

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in area (1).

Remove metal section (2).

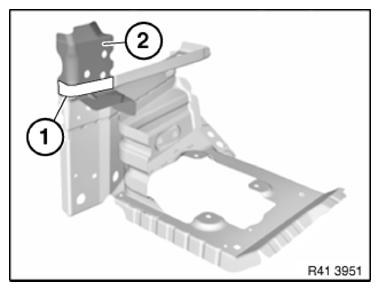

Fig 5: Identifying Metal Section And Welded Connections Area

G09916087

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the engine support side frame connection

Install and weld new parts.

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.
In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

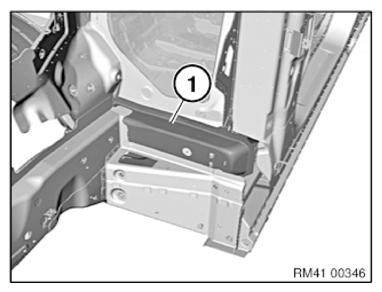

Fig 6: Identifying Bulkhead Cross Member

G09916088
