41 14 505 Replacing Rear Left Outer Wheel Arch Section (Rear Side Panel Removed) (Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

DISCONNECT HIGH-VOLTAGE SYSTEM FROM POWER .
Observe SAFETY INFORMATION for working with electric vehicles.

Read contents of BODY, GENERAL .

Observe (REPAIR STAGE 2) procedure!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Outer wheel arch section, rear
(2) Shaped part, wheel arch, outer (not shown)

Following CONSUMABLES are required:

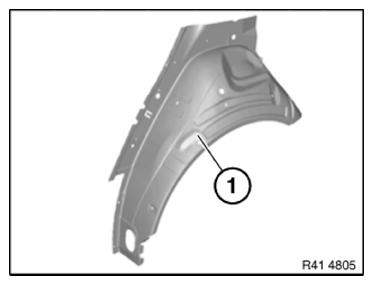

Fig 1: Identifying Outer Wheel Arch Section, Rear

G09916124

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	5
Blind rivets N6	11
Cleaning agent R1	1
Cavity sealing wax remover	1
Sealant D1

Removal of outer wheel arch section

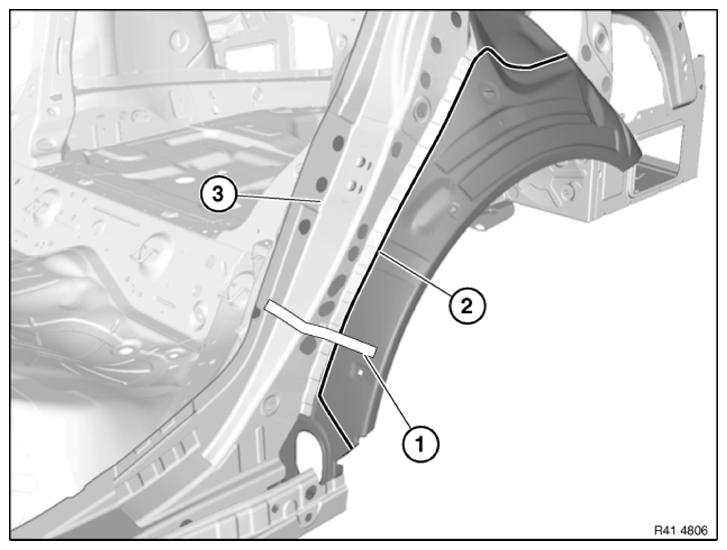

Fig 2: Identifying C-Pillar Reinforcement Component Edge, Severance Cut, Cavity Sealing

G09916125

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cavity sealing (1).

Mark severance cut (2) at component edge of C-pillar reinforcement (3) and cut.

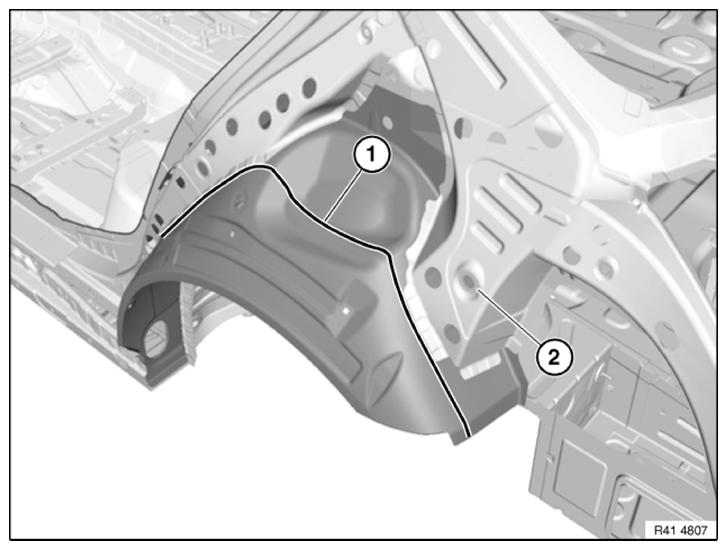

Fig 3: Identifying C-Pillar Reinforcement Component Edge, Severance Cut

G09916126

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) as shown and at component edge of C-pillar reinforcement (2) and cut.

Remove section for outer wheel arch section.

Preparation of new part:

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.

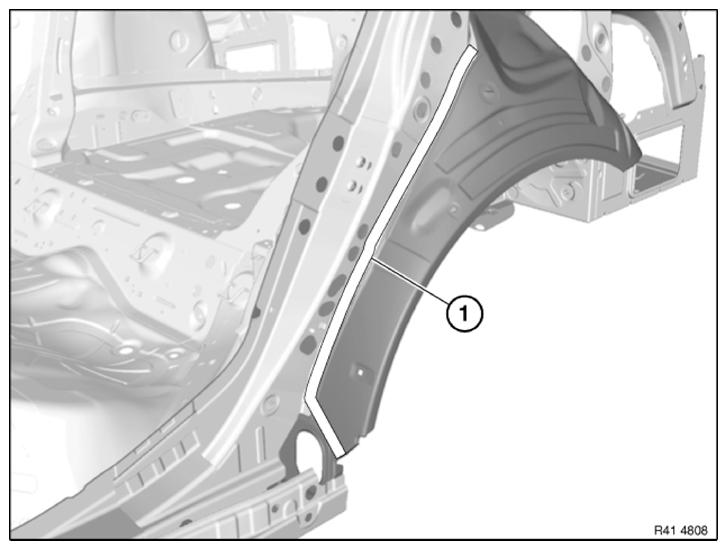

Fig 4: Identifying C-Pillar Reinforcement Component Edge And Severance Cut

G09916127

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts in combination with side wall to fit and secure.

Set nine 4.2 mm dia. holes for blind rivets in adhesive area (1).

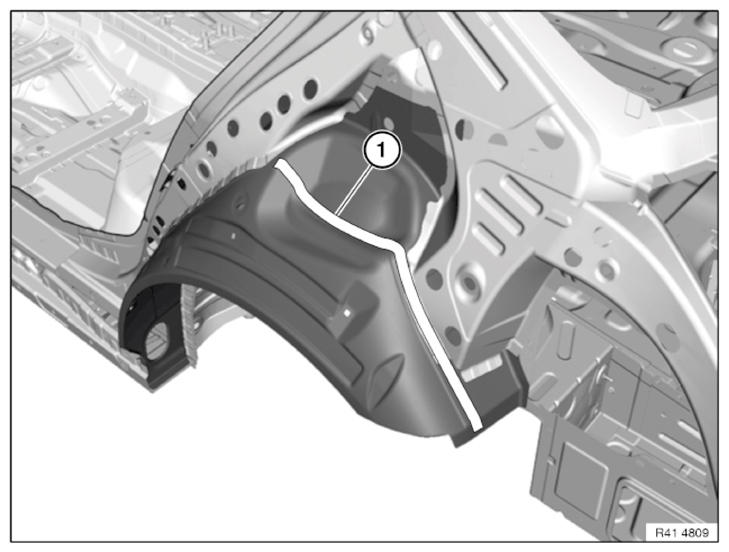

Fig 5: Identifying Blind Rivets Adhesive Area

G09916128

Courtesy of BMW OF NORTH AMERICA, INC.

Set seven 4.2 mm dia. holes for blind rivets in adhesive area (1).

Remove new part and deburr holes.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Installation of outer wheel arch section

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Apply sealant to new CAVITY ACOUSTIC BAFFLE .

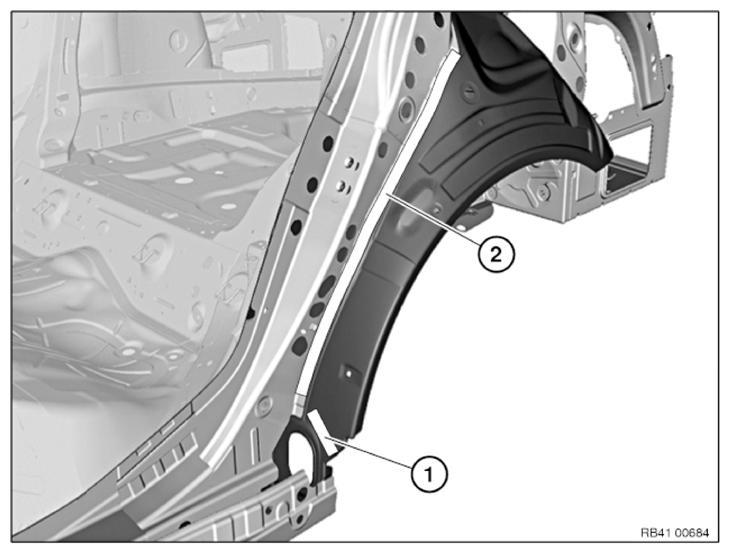

Fig 6: Identifying Outer Wheel Arch Section And Blind Rivets Area

G09916129

Courtesy of BMW OF NORTH AMERICA, INC.

Install outer wheel arch section and rivet with blind rivets.

In area (1) use blind rivets N3.

In area (2) use blind rivets N6.

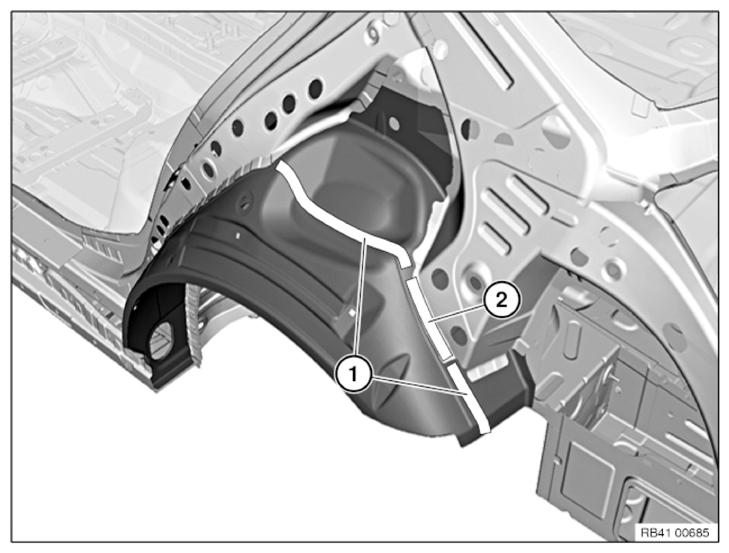

Fig 7: Identifying Blind Rivets Areas N3 And N6

G09916130

Courtesy of BMW OF NORTH AMERICA, INC.

Use blind rivets N3 in areas (1).

In area (2) use blind rivets N6.
