41 14 502 Replacing Rear Left Outer Wheel Arch Section With Reinforcement (Rear Side Panel Removed) (Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

DISCONNECT HIGH-VOLTAGE SYSTEM FROM POWER .
Observe SAFETY INFORMATION for working with electric vehicles.

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

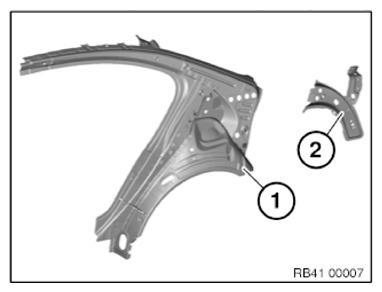

(1) Side frame, inside rear
(2) Tensioning strap, wheel arch
(3) Shaped part, wheel arch, outer (not shown)

Fig 1: Identifying Side Frame, Tensioning Strap, Wheel Arch
Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the outer wheel arch section

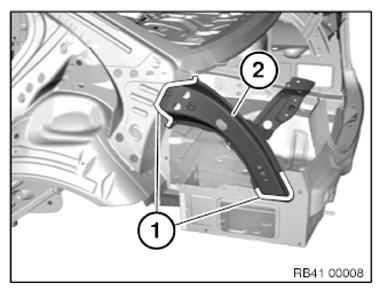

Open welded connections in areas (1).

Remove tensioning strap, wheel arch (2).

Fig 2: Identifying Wheel Arch Welded Connections Areas

G09916147

Courtesy of BMW OF NORTH AMERICA, INC.

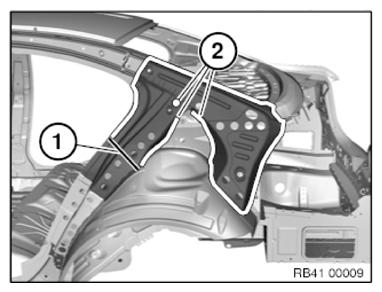

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

Open welded connections in areas (2).

Remove reinforcement on C pillar.

Fig 3: Identifying C Pillar Welded Connections Areas And Severance Cut

G09916148

Courtesy of BMW OF NORTH AMERICA, INC.

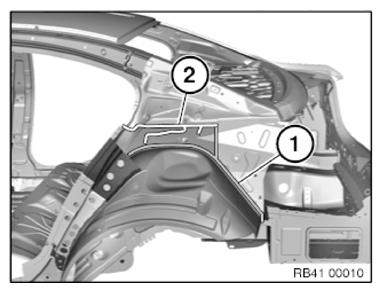

LOOSEN spot-welded adhesive joints in area (1).

Open welded connections in area (2).

Fig 4: Identifying Spot-Welded Adhesive Joints Area

G09916149

Courtesy of BMW OF NORTH AMERICA, INC.

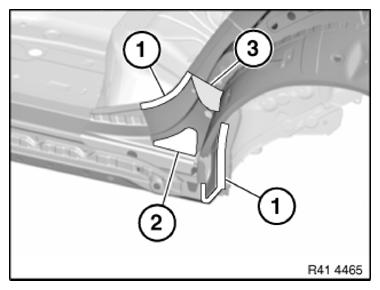

Open welded connections in areas (1) and (2).

(3) = wheel arch cavity sealing.

Fig 5: Identifying Wheel Arch Cavity Sealing, Welded Connections Areas

G09916150

Courtesy of BMW OF NORTH AMERICA, INC.

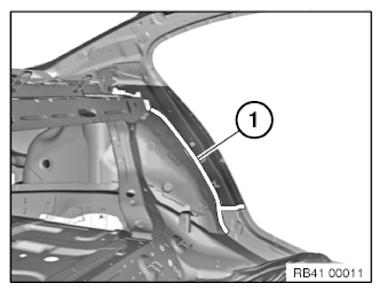

View from inside.

Open spot-welded adhesive joints in area (1)

Remove outer section of wheel arch.

Fig 6: Identifying Spot-Welded Adhesive Joints Area

G09916151

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

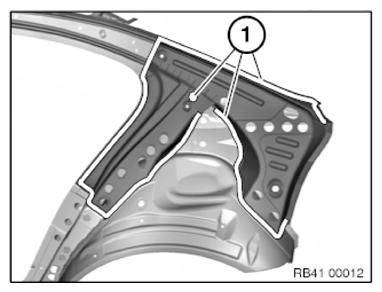

Open welded connections in areas (1).

Remove reinforcement on C pillar.

NOTE: Components are required for the installation of the wheel arch.

Fig 7: Identifying C Pillar Welded Connections Areas

G09916152

Courtesy of BMW OF NORTH AMERICA, INC.

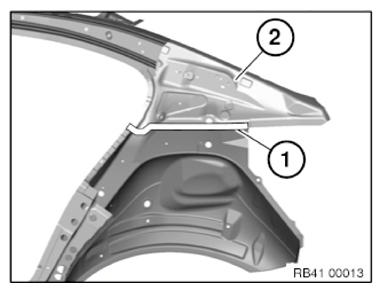

Open welded connections in area (1).

Remove C-pillar (2).

Adjust new parts in conjunction with side panel to fit.

Fig 8: Identifying C Pillar Welded Connections Areas

G09916153

Courtesy of BMW OF NORTH AMERICA, INC.

Installation outer wheel arch section

Apply sealant to new CAVITY SEALING .

Install and weld new parts.
