41 11 311 Replace Entrance For Front Left Door (Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:
Compliance with the following points is mandatory before beginning work:
- DISCONNECT HIGH-VOLTAGE SYSTEM FROM POWER .
- Observe SAFETY INFORMATION for handling electric vehicles.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

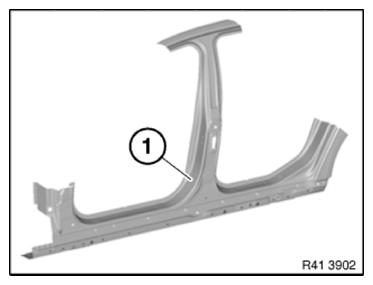

- (1) B-pillar with entrance
Mark severance cuts in accordance with specified dimensions and cut.
IMPORTANT:
Cut outer panel only for following severance cuts.

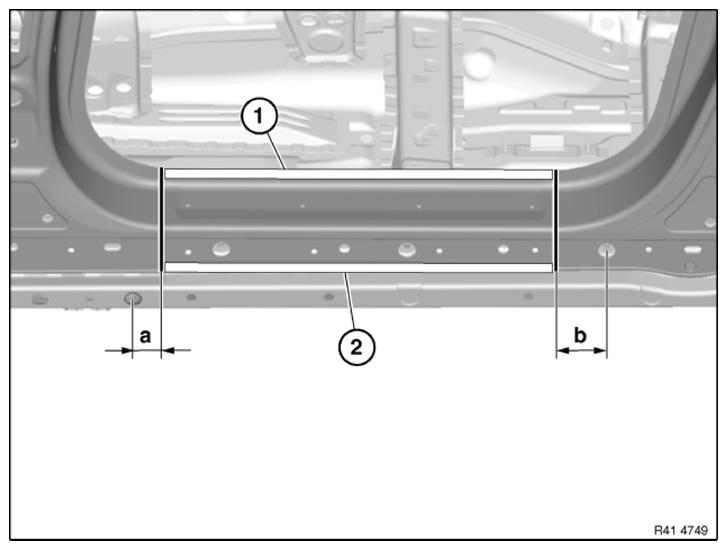

Dimension a = approx. 40 mm behind 25 mm dia. hole.
Dimension b = approx. 70 mm before hole dia. 25 mm.
Open welded connections in areas (1) and (2).
Dimension a = approx. 40 mm behind 25 mm dia. hole.
Dimension b = approx. 70 mm before hole dia. 25 mm.
Open welded connections in areas (1) and (2).
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Separate welded connections on new part to match vehicle.
Weld in REINFORCEMENT PLATES at all severance cuts.
Set repair welding spots in area (1) on existing welding spots on vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.
