41 11 095 Replacing Engine Support In Front Of Wheel Arch, Left (Non-Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Follow procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Use only APPROVED SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.
Necessary preliminary work:
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

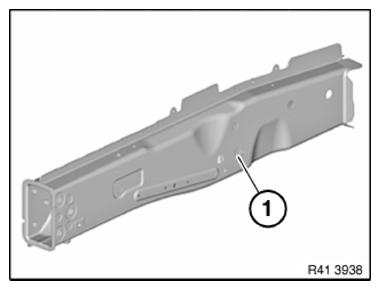

- (1) Engine support, front

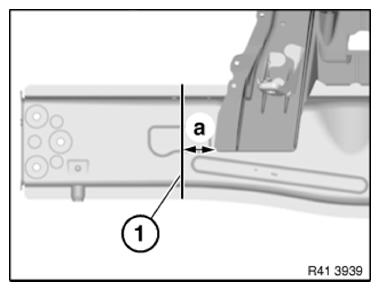

Mark severance cut in accordance with Dimension a and cut.
Dimension a=40 mm before wheel arch edge.
Remove section of engine support.
Installation note:
Mark severance cut on new part in accordance with vehicle and cut.
Adjust new part to fit with alignment bracket or universal mount.
Weld in REINFORCEMENT PLATE at severance cut.
