41 12... Replacing Luggage Compartment Floor, Left Section (Tail Panel Or Side Wall Removed) (Non-Hybrid)

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

STRIP DOWN VEHICLE

Illustration of side wall and tail panel installed.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Luggage compartment floor, left section

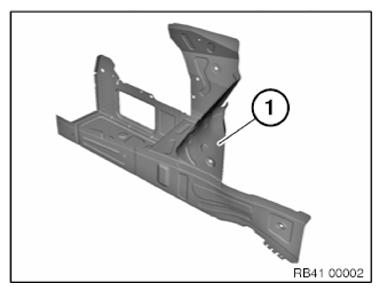

  Fig 1: Identifying Luggage Compartment Floor Welded Connections Area

  Courtesy of BMW OF NORTH AMERICA, INC.

Removing luggage compartment floor on left:

Operation is described on the left side. Right side identical.

Separate welded connections in area (1) from inside.

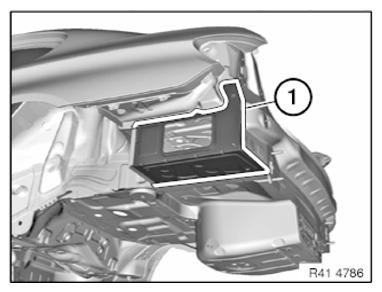

Fig 2: Identifying Luggage Compartment Floor Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove the luggage compartment floor.

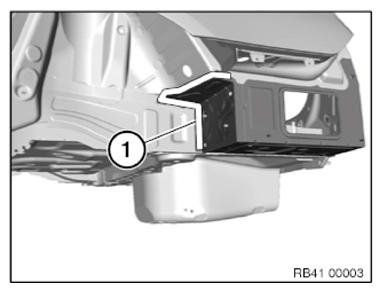

Fig 3: Identifying Luggage Compartment Floor Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Separate parts not required from new component (1).

Adjust new part in the combination with side wall or tail panel to fit and secure.

Fig 4: Identifying Luggage Compartment Floor Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of luggage compartment floor:

Fit the new part into position and weld.
