41 12... Replacing Luggage Compartment Floor, Left Section (Tail Panel Or Side Wall Removed) (Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:
Compliance with the following points is mandatory before beginning work:
- DISCONNECT HIGH-VOLTAGE SYSTEM FROM POWER .
- Observe SAFETY INFORMATION for working with electric vehicles.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .

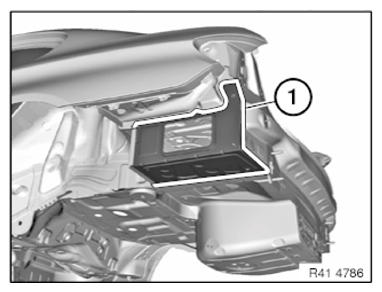

Illustration of side wall and tail panel installed.

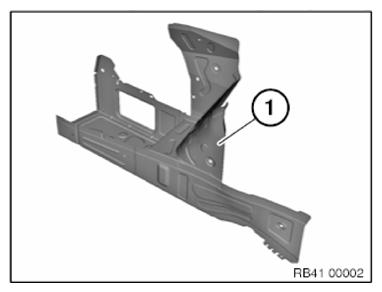

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Luggage compartment floor, left section
Removing luggage compartment floor on left:
Operation is described on the left side. Right side identical.

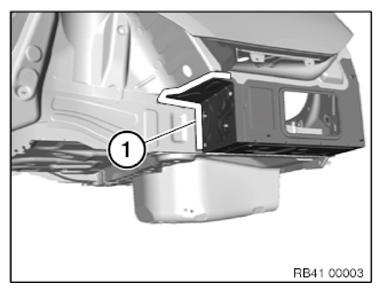

Separate welded connections in area (1) from inside.
Open welded connections in area (1).
Remove the luggage compartment floor.
Preparation of new part:
Separate parts not required from new component (1).
Adjust new part in the combination with side wall or tail panel to fit and secure.
Installation of luggage compartment floor:
Fit the new part into position and weld.
