41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed) (Non-Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe (REPAIR STAGE 3) procedure!

STRIP DOWN VEHICLE

Use only APPROVED SPOT-WELDING APPARATUS for repairs!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) End of luggage compartment floor

Fig 1: Identifying End Of Luggage Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

Removing cross-member

Open welded connections in areas (1) and (2).

Fig 2: Identifying Cross-Member Welded Connections Areas

G09916002

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

Open welded connections in area (1) and remove cross member (2).

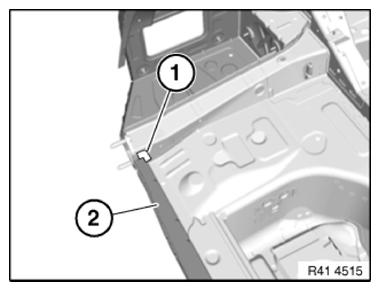

Fig 3: Identifying Cross Member Welded Connections Area

G09916003

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Fit cross member in combination with TAIL PANEL .

Installing cross-member:

Install cross member and weld the same as series.
