41..... Filling Bulkhead Cross Member With Foam
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
For acoustic insulation reasons insulating foam is applied to the finish-painted bodyshell in the bulkhead cross member area.
A 2-component PU cavity foam is used.
Sourcing reference for cavity foam,
Observe SAFETY AND APPLICATION INSTRUCTIONS .

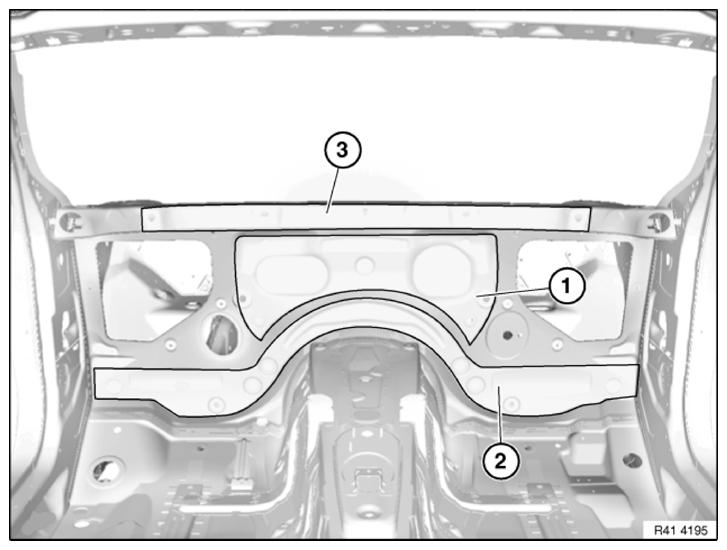

Remove seal plugs of cavities 1 to 3 and fill cavities with foam.
In so doing, insert spray pipe into bores and slowly pull out during the spraying operation.
To perform the operation, it may be necessary to lengthen the spray pipe.
IMPORTANT:
Empty the can within 8 minutes.
Follow manufacturer's safety instructions.
