67 11 555 Removing and installing/replacing servodrive for tank filler flap

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TOP TRIM FROM TAIL PANEL .

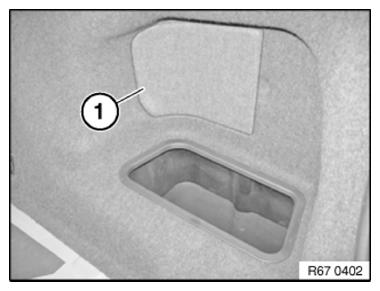

Remove cover (1).

Fig 1: Identifying Tail Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

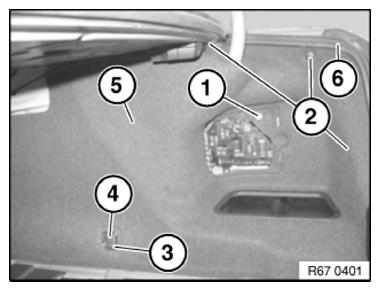

Detach fuel filler flap emergency release (1).

Lift out expanding rivets (2).

Release screw (3).

Remove lashing eye (4).

Press wheel arch panel (5) carefully to the side.

Installation:

Make sure side rubber seal (6) is correctly seated.

Fig 2: Identifying Wheel Arch Panel, Expanding Rivets, Lashing Eye, Rubber Seal And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

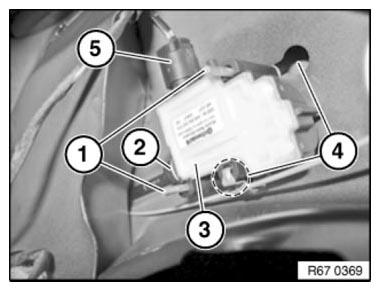

Slacken screws (1)

Carefully feed servodrive (3) out of guides (4).

Unlock plug connection (5) and disconnect.

IMPORTANT: Risk of damage:
To prevent damaging locking pin guide (2), do not tilt servodrive (3).

Installation:

Make sure the actuator drive (3) is correctly set. It must be possible to lock or unlock the tank filler flap completely.

Fig 3: Identifying Locking Pin Guide, Servodrive Out Of Guides And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

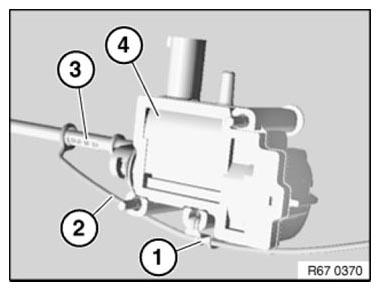

Unhook emergency actuation pull strap (2) from retainer (1) and remove from locking pin (3) of servodrive (4).

Fig 4: Identifying Actuator Drive, Tensioning Strap, Clamp And Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

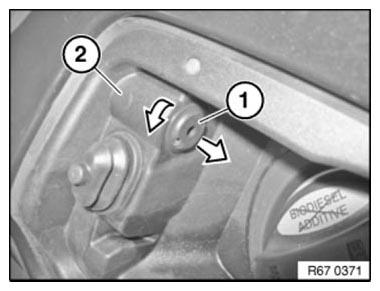

Turn sleeve (1) with a suitable tool (e.g. pointed pliers) approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 5: Turning Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

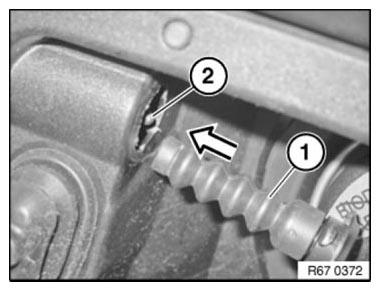

Make sure sleeve (1) is correctly seated on locking pin for tank filler flap (2).

Fig 6: Identifying Fuel Filler Flap And Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
