21 21 500 Removing And Installing Or Replacing Clutch (GS6-53BZ) S63

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Do not clean self-adjusting clutch and flywheel with high pressure cleaner or washing machine as the proper function of adjustment unit and damping springs can no longer be guaranteed.
Clean friction surface only.
Check SAC clutch for wear and damage and replace if necessary.

Necessary preliminary tasks:

Remove TRANSMISSION .

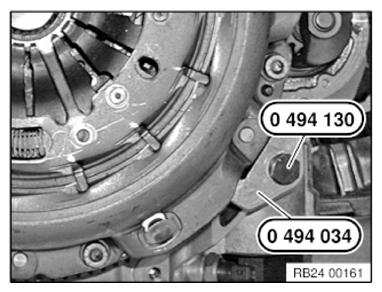

Secure flywheel with special tools 0 494 034 and 0 494 130.

Fig 1: Securing Flywheel With Special Tools 0 494 034 And 0 494 130

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The clutch must be replaced after it is released.

Release screws.

Remove clutch (1).

Installation note:

Replace screws.

Fig 2: Clutch Screws

Courtesy of BMW OF NORTH AMERICA, INC.

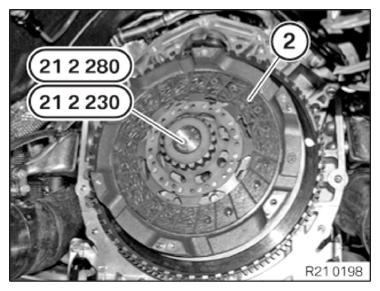

Center new clutch disc (2) with special tool 21 2 230 on flywheel.

IMPORTANT: Install clutch disc in correct position.
Note designation for "engine side"/"transmission side".
Handle clutch disc with care. Do not touch surfaces of friction linings.

Fig 3: Centering Clutch Disc With Special Tool 21 2 230 On Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

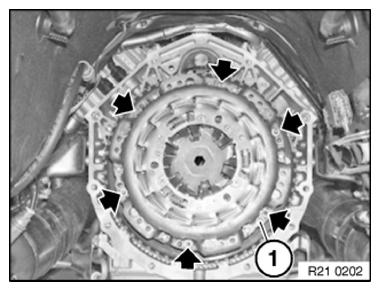

Fit clutch to flywheel.

Tightening torque 21 21 1AZ .

IMPORTANT: Clutch must be secured by way of dowel pins (1).

Fig 4: Clutch Screws

Courtesy of BMW OF NORTH AMERICA, INC.

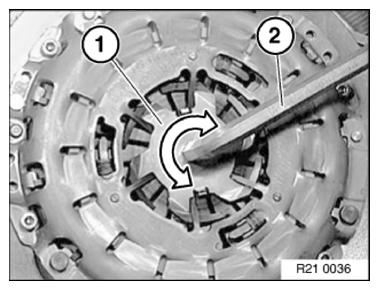

Carefully unscrew stop (1) clockwise or anticlockwise with hexagon socket wrench SW14 (2).

NOTE: A slight snapping of the plate spring while unscrewing the lock is possible.

Fig 5: Removing Stop Clockwise/Anticlockwise With Hexagon Socket Wrench SW14

Courtesy of BMW OF NORTH AMERICA, INC.

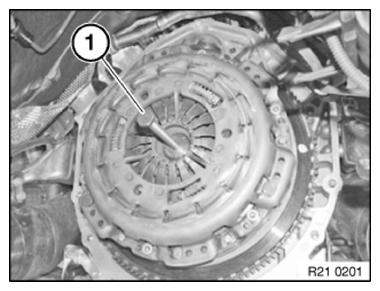

Withdraw special tool from clutch disc with aid of accompanying screw (1).

Fig 6: Clutch Disc Accompanying Screw

Courtesy of BMW OF NORTH AMERICA, INC.
