22 32 055 Removing and installing/replacing transmission bearing block

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove rubber mounts for gearbox mounting. Refer to:

For N63: 22 32 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING (N63) .

For N52T & N53: 22 32 001 REPLACING RUBBER MOUNT FOR GEARBOX MOUNTING (N52T, N53) .

For N55: 22 32 001 REPLACING RUBBER MOUNT FOR GEARBOX MOUNTING (N55) .

For N57: 22 32 001 REPLACING RUBBER MOUNT FOR GEARBOX MOUNTING (N57) .

For N52: 22 32 001 REPLACING RUBBER MOUNT FOR GEARBOX MOUNTING (N52) .

Slacken nut (1).

Unfasten ground strap (2).

Fig 1: Identifying Ground Strap Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove ground cable.

Release screws (3).

Remove transmission mounting bracket from transmission.

Installation note:

Tightening torque 22 32 1AZ .

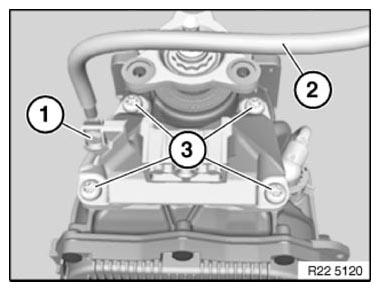

Fig 2: Identifying Automatic Transmission Mounting Bracket, Screw And Earth Cable

Courtesy of BMW OF NORTH AMERICA, INC.
