22 11 110 Replacing left engine support arm (N52T, N53)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Secure engine in INSTALLATION POSITION
- For N53: Remove left charge air duct.
- For N52T: Remove THROTTLE BODY .
IMPORTANT:
Aluminum screws/bolts must be replaced each
time they are released.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

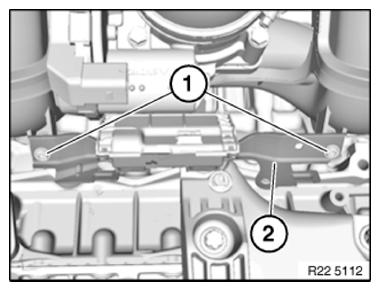

Release screws (1).
Lay holder (2) for wiring harness to one side.
Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
Installation note:
Replace aluminum screws.
