22 11 001 Replacing right engine mount (N57)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work: 23

Secure engine in INSTALLATION POSITION
Remove rear UNDERBODY PROTECTION
Release ENGINE SUPPORT ARM

Detach vacuum hose (1) from engine mount.

Release screws (2) and remove engine mount.

Tightening torque 22 11 1AZ .

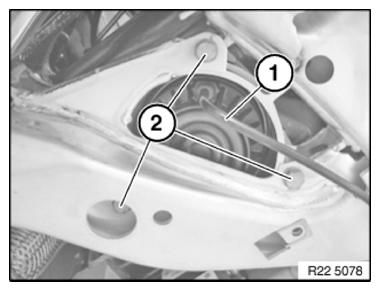

Fig 1: Identifying Vacuum Hose From Engine Mount And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber part (1) of engine mount must point to center of vehicle.
