24 11 015 Removing And Installing/Sealing Or Replacing Transmission Oil Sump (GA8HP70Z)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: Remove transmission oil sump only after it has cooled down.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Installation note:

The transmission oil sump must be renewed every time it is removed.

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION .

Remove retaining plates (2).

Figure: similar

Fig 1: Ground Strap And Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil drain plug (1).

Tightening torque: 24 11 2AZ .

Drain automatic transmission fluid.

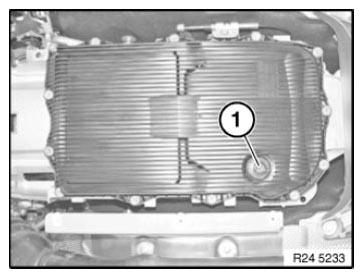

Fig 2: Transmission Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

Unscrew all bolts.

Remove and renew transmission oil sump.

Clean the contact surface of the transmission oil sump on the transmission.

NOTE: The transmission oil sump must be renewed every time it is removed.

Installation note:

Insert new screws until screw heads make contact.

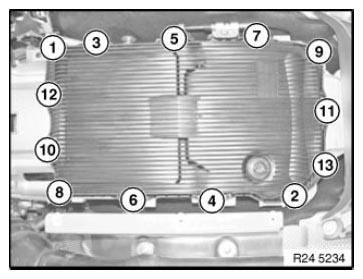

Fig 3: Transmission Oil Sump Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws in sequence 1...13 to specified torque.

Tightening torque: 24 11 4AZ .

IMPORTANT: Aluminum screws/bolts must be replaced every time they are released.
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
