18 12 046 Replacing front silencer (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Risk of burning!
Only perform this repair work after the exhaust system has cooled down.

Support front silencer with special tool 31 2 220 and a suitable universal lifter, and secure against falling down.

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new front silencer.

Carry over separation point to faulty front silencer and mark.

Secure front silencer against falling out.

Cut through exhaust pipes at marked point with a suitable tool.

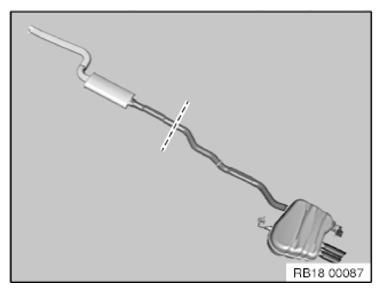

Fig 2: Identifying Separation Point To Faulty Front Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

F10, F11, F18 only:

Release screws (1).

Tightening torque 18 20 4AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 5AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 3: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

Release screws (1).

Remove heat shield (2).

Fig 4: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

Release screws (1).

Tightening torque 18 20 4AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 5AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 5: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Tightening torque 18 31 1AZ .

Feed out front silencer and remove.

Fig 6: Identifying Exhaust System Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect front silencer to rear silencer by means of clamp and align.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Fig 7: Identifying Front Silencer Center Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.

Check rubber mounts, renew damaged rubber mounts.
