18 12 031 Replacing rear silencer (N20)

Special tools required:

• 31 2 220

Support rear silencer with special tool 31 2 220 and a suitable universal lifter and secure against falling out.

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• F07, F11 only:

  Remove left trailing link.

Carry over separation point to faulty rear silencer and mark.

Secure rear silencer against falling off.

Cut through exhaust pipe at marked point with a suitable tool.

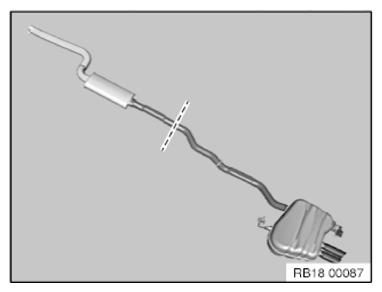

Fig 2: Identifying Cutting Line Mark On Rear Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque 18 31 3AZ .

Fig 3: Identifying Rear Silencer (N20) Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Spray bolt (1) and rubber mount with lubricant 5.2 .

Release screw (1).

Lower and remove exhaust system with assistance of a second person.

Installation note:

Risk of damage to screw (1) and retaining plate thread.

Observe screwing sequence  .

1. Firstly apply nut to body at rear.
2. Then join bolt (1) exactly and secure. If necessary support rear silencer using a suitable jack.

   Tightening torque 18 31 6AZ .

   Fig 4: Identifying Join Bolt

   Courtesy of BMW OF NORTH AMERICA, INC.

.

Detach pressure hose (1).

Slacken nut (2).

Tightening torque 18 31 5AZ .

Lower the rear silencer with the assistance of another person and remove it.

Fig 5: Identifying Pressure Hose And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect front silencer to rear silencer by means of clamp and align.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Fig 6: Identifying Front Silencer Center Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
