18 00 020 Removing and installing complete exhaust system (N52)

Special tools required:

• 31 2 220

Danger of injury!

Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary tasks:

• F11 only:

Remove left trailing link.

Support exhaust system with special tool 31 2 220.

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 18 31 1AZ .

Remove connecting plate (2).

Replace self-locking nut.

Replace gaskets.

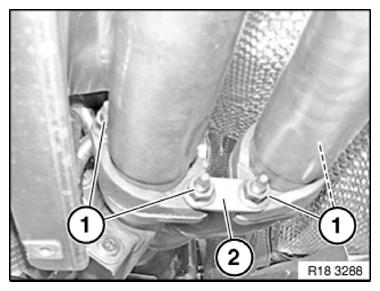

Fig 2: Identifying Connecting Plate And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2).

Tightening torque 18 20 1AZ .

Fig 3: Identifying Exhaust System Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 3AZ .

Fig 4: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 31 2AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 31 3AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 5: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 4AZ .

Fig 6: Identifying Bracket Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off vacuum hose (1).

Slacken nut (2).

Tightening torque 18 20 5AZ .

Lower and remove exhaust system with assistance of a second person.

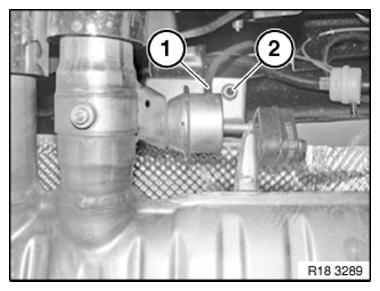

Fig 7: Identifying Vacuum Hose With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Align tail pipes (1) of rear silencer in each case centrally to openings in rear apron.

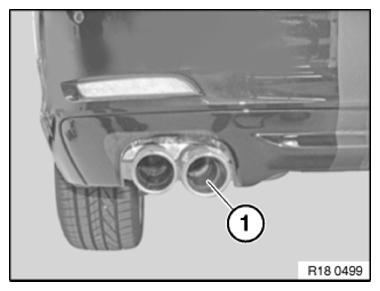

Fig 8: Identifying Tail Pipes Of Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leak tightness.
