18 00 018 Removing and installing complete exhaust system (N57 D30 O 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.

Danger of injury!

Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary work:

F07 and F11 only:

Remove left trailing link.

Support exhaust system with special tool 31 2 220.

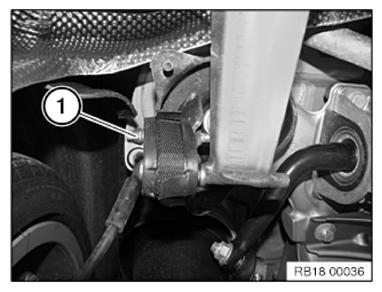

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on clamp.

Tightening torque 18 31 1AZ .

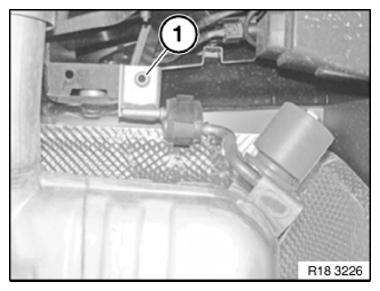

Fig 2: Identifying Exhaust System Nut On Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 20 3AZ .

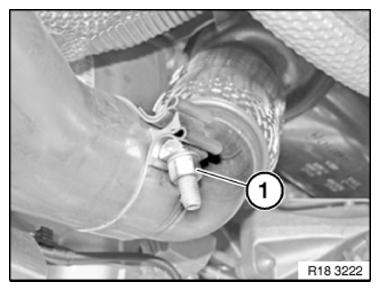

Fig 3: Identifying Center Silencer Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 4AZ .

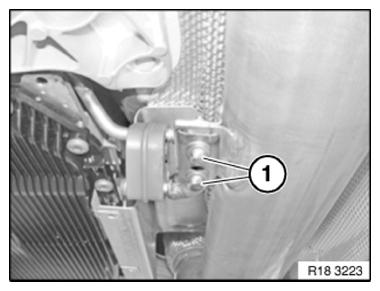

Fig 4: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Release screws (1).

Remove heat shield (2).

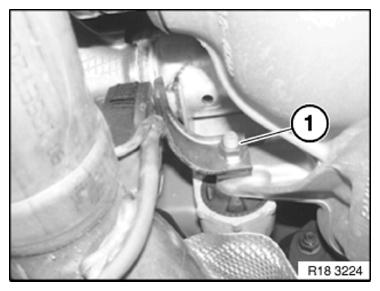

Fig 5: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only F10, F11:

Release screws (1).

Tightening torque 18 20 6AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 7AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 6: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Only F01, F02:

Release screws (1).

Tightening torque 18 20 6AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 7AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 7: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 5AZ .

Fig 8: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Spray lubricant 5.2 onto screw (1) and rubber mount.

Release screw (1).

Lower and remove exhaust system with assistance of a second person.

Installation note:

Risk of damage to screw (1) and retaining plate thread.

Observe screwing sequence .

Fig 9: Identifying Rubber Mount Screw

Courtesy of BMW OF NORTH AMERICA, INC.

First secure nut at rear axle final drive and nut at rear of floor panel.
Then join bolt (1) exactly and secure. If necessary support rear silencer using a suitable jack.
Tightening torque 18 20 5AZ .

Installation note:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leak tightness.
