18 00 018 Completely remove and install the exhaust system (N57 D30 O/T 1 with SCR)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Risk of burning!
Only carry out this repair work when the exhaust system has cooled down.

IMPORTANT: Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary work:

Switch off ignition.
Remove rear UNDERBODY PROTECTION .
F11 and F07 only:
Remove trailing link.

Support exhaust system with jack and special tool 31 2 220 or other suitable special tool and secure against falling down.

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

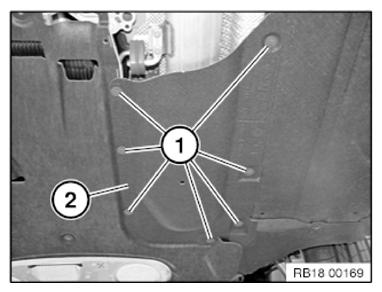

Fig 2: Identifying Exhaust System Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Detach cable from clamp.

Do not release the exhaust-gas temperature sensor (2).

Fig 3: Identifying Exhaust-Gas Temperature Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 18 31 1AZ .

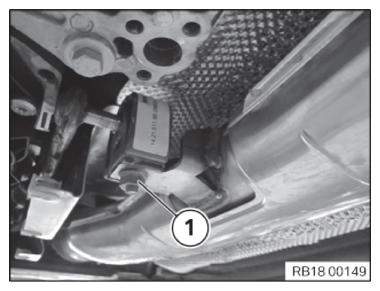

Fig 4: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 3AZ .

Fig 5: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

OnlyF07:

Release screws (1).

Remove heat shield (2).

Fig 6: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

Release screws (1).

Tightening torque 18 31 6AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 31 7AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 7: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F10 and F11 only:

Release screws (1).

Tightening torque 18 31 6AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 31 7AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 8: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach nitrogen oxide sensor (1) and remove from exhaust system.

Tightening torque 13 62 11AZ .

Fig 9: Identifying Nitrogen Oxide Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Detach particulate control sensor (1) and remove from exhaust system.

Tightening torque 13 62 13AZ .

Fig 10: Identifying Particulate Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

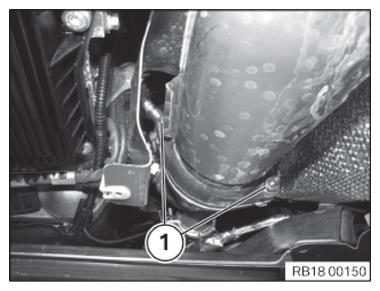

Slacken nut (1).

Tightening torque 18 20 4AZ .

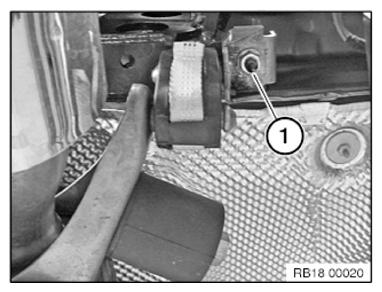

Fig 11: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Spray lubricant 5.2 onto screw (1) and rubber mount.

Release screw (1).

Lower and remove exhaust system with assistance of a second person.

Installation note:

Risk of damage to screw (1) and retaining plate thread.

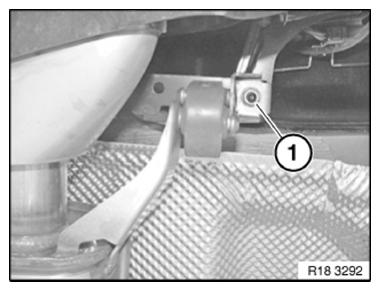

Fig 12: Identifying Rubber Mount Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Observe screwing sequence .

Firstly apply nut to body at rear.
Then join bolt (1) exactly and secure. If necessary support rear silencer using a suitable jack.
Tightening torque 18 20 5AZ .

N57 D30 O 1 only:

Slacken nut (1).

Tightening torque 18 20 5AZ .

Lower and remove exhaust system with assistance of a second person.

Fig 13: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

N57 D30 T 1 only:

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 5AZ .

Fig 14: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check exhaust system for leaks.
