18 40 050 Removing and installing/replacing front exhaust manifold (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR EXHAUST MANIFOLD

NOTE: The oxygen sensors are in danger of being damaged when the exhaust manifolds are removed and installed.

Remove CONTROL SENSOR from cylinders 1 to 3.

Remove MONITORING SENSOR from cylinders 1 to 3.

Slacken nut (1).

Tightening torque 18 20 2AZ .

Replace self-locking nut.

Fig 1: Identifying Front Exhaust Manifold (N52) Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Remove exhaust manifold (1).

Installation note:

Clean sealing faces and replace seals.

Replace nuts.

Tightening torque 18 40 1AZ .

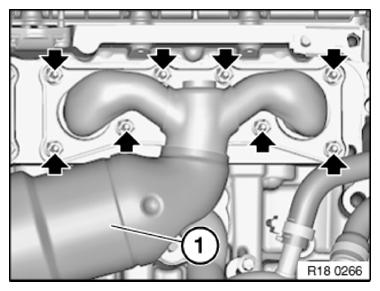

Fig 2: Locating Exhaust Manifold Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
