36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE
(ESD protection).
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT floor trim panel.

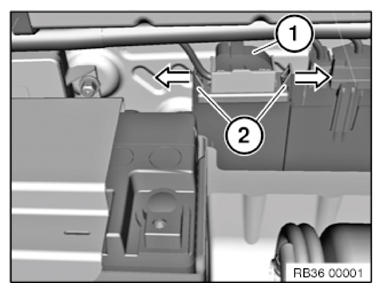

Disconnect plug connection (1).
Press retaining tabs (2) apart as indicated by arrow.
Lift RDC control unit upwards to remove.
Replacement:
- Carry out programming/encoding
