12 21 520 Replacing preheating control unit (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Remove ACOUSTIC COVER at rear.

Release screw (1).

Tightening torque 12 23 2AZ .

Push preheating control unit (2) back from the bracket.

Unlock and disconnect both connectors (3) from preheating control unit.

Thread out preheating control unit and remove.

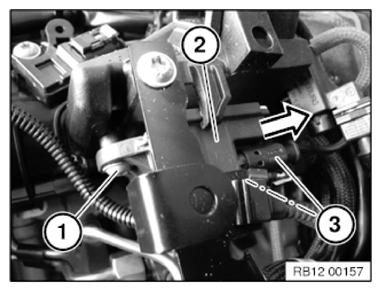

Fig 1: Locating Control Unit Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the preheating control unit is replaced, the preheating control service function must be performed using the diagnosis system after it is replaced.

Installation note:

Assemble engine.
