12 14 524 Replacing pulse sensor on exhaust camshaft (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Read out fault memory of DME control unit
Turn off ignition
Remove ACOUSTIC COVER

Unfasten screw (1)

Tightening torque 12 90 2AZ .

Release holder (2) from cylinder head.

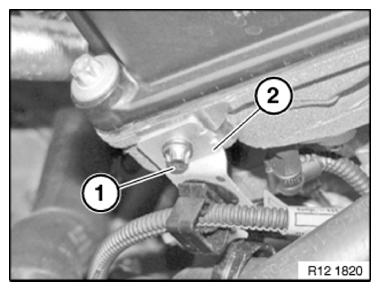

Fig 1: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Release screw.

Installation note:

Replace screw.

Tightening torque 13 62 1AZ .

Remove pulse sensor (2).

Installation note:

Replace seal.

Fig 2: Identifying Pulse Sensor Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Delete fault memory.
