12 14 521 Replacing crankshaft pulse sensor (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove STIFFENING PLATE

Installation location:

On transmission housing at bottom right.

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 4AZ .

Withdraw pulse generator (3) from transmission housing.

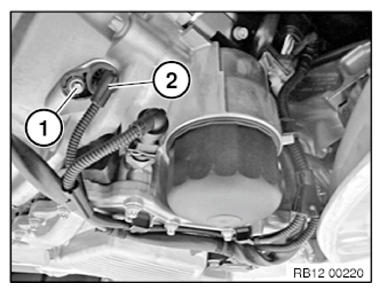

Fig 1: Identifying Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clear diagnostic fault entries from fault memory.
