64 11 865 (N52T, N55) Replacing actuator drive of recirculated air flap

Necessary preliminary tasks:

• Remove RIGHT/REAR SUSPENSION CROSS-BRACE

Unlock and disconnect all plug connections.

Unlatch connector housings (1 and 2) from guide of auxiliary E-box (3).

Fig 1: Identifying Connector Housings And Guide Of Auxiliary E-Box

Courtesy of BMW OF NORTH AMERICA, INC.

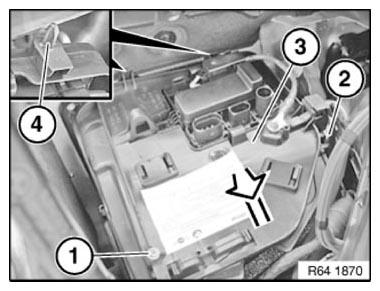

Release screw (1).

Carefully unlock retaining hook (2) while lifting E -box (3) and simultaneously pulling forward

Installation note:

Ensure guide lug (2) sit correctly in the respective recesses of the fan housing.

Fig 2: Identifying E-Box, Screw, And Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on AUC sensor (2) and disconnect.

Fig 3: Identifying Plug Connection On AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on blower housing cover (2).

Lift out blower housing cover.

Fig 4: Identifying Screws On Blower Housing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip relay lever (2) with a suitable tool.

Remove actuator drive (3).

Unlock plug connection (4) and disconnect.

Fig 5: Identifying Plug Connection, Actuator Drive, Relay Lever And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

• Body
• Heating and air conditioning function
• Flap motors
• Readdress flap motors
