64 11 326 Replacing the button caps of the heating and air conditioning system control panel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

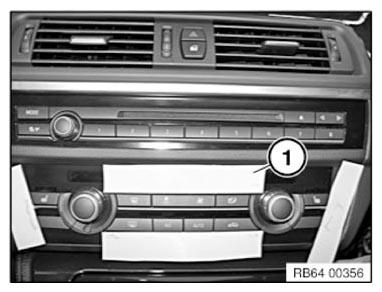

Tape area (1) around the button caps with adhesive tape.

Fig 1: Identifying Adhesive Tape Area

G09929359

Courtesy of BMW OF NORTH AMERICA, INC.

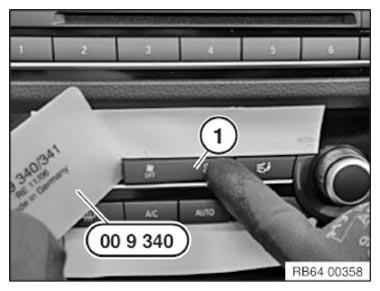

Press blower rocker switch (1) on one side and pry it off on the other side with special tool 00 9 340 .

Fig 2: Removing Blower Rocker Switch Using Special Tool (00 9 340)

G09929360

Courtesy of BMW OF NORTH AMERICA, INC.

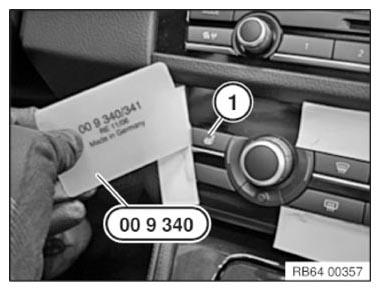

Pry off remaining button caps (1) with special tool 00 9 340 .

Fig 3: Prying Off Remaining Button Caps Using Special Tool (00 9 340)

G09929361

Courtesy of BMW OF NORTH AMERICA, INC.

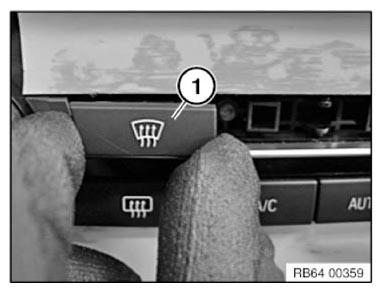

Clip in button caps (1) into operating unit.

Remove adhesive tape.

Fig 4: Installing Button Caps Into Operating Unit

G09929362

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
