64 11 273 Replacing water valve for heater (S63)

Special tools required:

• 17 2 050
• 13 5 160

Recycling

Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping coolant.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

• Remove LEFT INTAKE SILENCER HOUSING

Unfasten tank ventilation line (1) and disconnect.

Set the tank ventilation line (1) aside.

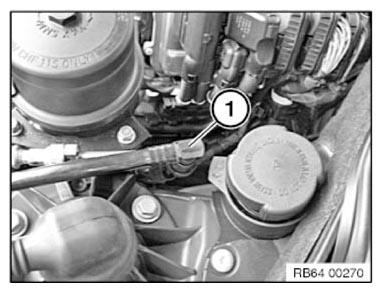

Fig 1: Identifying Tank Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect fuel delivery line (1).

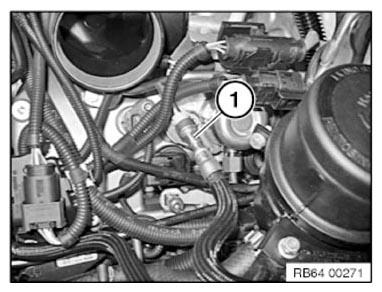

Fig 2: Identifying Fuel Delivery Line

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel lines with special tools (1) 13 5 160 and (2) 13 5 162.

Fig 3: Sealing Fuel Lines Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Tightening torque 32 41 2AZ .

Remove the oil reservoir (1) and set aside.

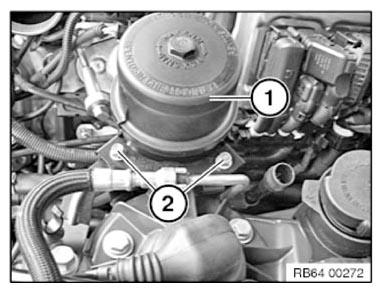

Fig 4: Identifying Oil Reservoir And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clips (1) with special tool 17 2 050 and remove coolant hoses.

Disconnect plug connection (2).

Pull water valve (3) upwards out of holders.

Installation note:

Do not  mix up connections of coolant hoses.

Replace damaged coolant hoses.

Fig 5: Identifying Water Valve, Plug Connection And Hose Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber mount (1) and guide lug (2) are securely seated in holders (3) on wheel arch body.

Fig 6: Identifying Holders, Guide Lug And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• BLEED AND FILL cooling system.
• Check for LEAKS .
