64 12 673 Replacing left or right electric auxiliary heater - rear cabin

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's seat or passenger seat. See REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE .

Release screws (1).

Remove cover (2).

Fold carpet (3) to one side.

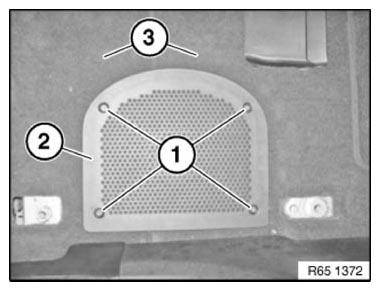

Fig 1: Identifying Carpet, Screws And Cover

G09929400

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nuts (1).

Installation:

Ensure that air duct (2) is correctly seated.

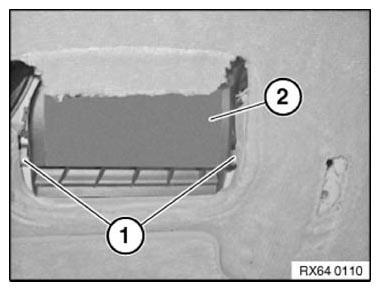

Fig 2: Identifying Air Duct And Plastic Nuts

G09929401

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1) on electric auxiliary heater (2).

Unlock and disconnect plug connection (3) on temperature sensor.

Completely feed out air duct (4).

Fig 3: Identifying Plug Connections, Electric Auxiliary Heater And Air Duct

G06886280

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove TEMPERATURE SENSOR FOR ELECTRIC AUXILIARY HEATER .
