17 22 030 Removing And Installing/Replacing Oil Line For Engine Oil Cooler (N55)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: Wear protective gloves and safety goggles.

Recycling:

Engine oil escapes when oil line is released.

Catch and dispose of emerging engine oil.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

Remove FAN COWL .
Remove front right WHEEL ARCH PANEL .

Release screw (1).

Tightening torque: 17 22 4AZ .

Detach oil lines from oil filter housing.

Catch and dispose of emerging engine oil.

Fig 1: Screw, Oil Lines And Oil Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Tightening torque: 17 22 5AZ .

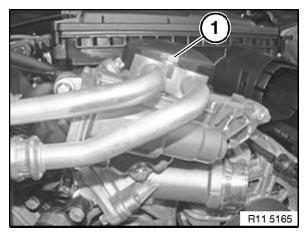

Fig 2: Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock oil lines (1) and detach from engine oil cooler flange.

Catch and dispose of emerging engine oil.

Release clamp (2).

Feed out engine oil line and remove.

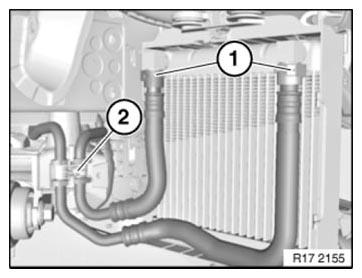

Fig 3: Oil Lines And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings on engine oil lines.

Fig 4: Sealing Rings On Engine Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completion of work, check oil level. Top up engine oil, if necessary.
