17 22 010 Removing And Installing/Replacing Transmission Oil Cooler For Automatic Transmission (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Drain COOLANT .

Recycling

Catch and dispose of drained coolant in a suitable container.

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission fluid in a suitable container.

Observe country-specific waste disposal regulations.

Release screw (1).

Tightening torque: 17 10 3AZ .

Pull off transmission oil cooler (2) in upward direction from fan cowl.

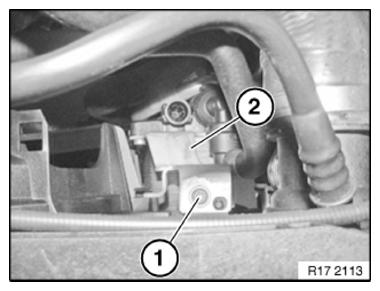

Fig 1: Transmission Oil Cooler And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock coolant hose (1) and detach from gearbox oil cooler.

Unlock transmission fluid lines (2) and detach from gearbox oil cooler.

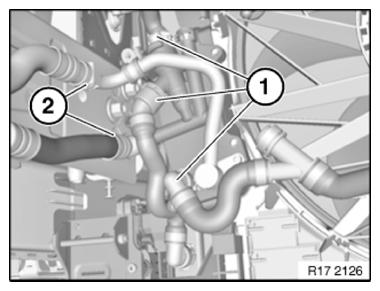

Fig 2: Coolant Hose And Transmission Fluid Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Pull transmission oil cooler (1) up and out of module carrier (2).

Unthread and remove transmission oil cooler.

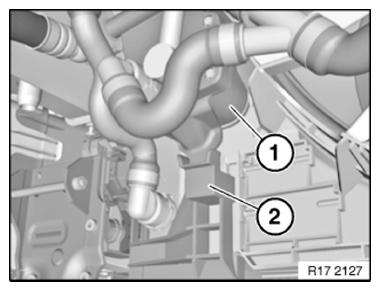

Fig 3: Transmission Oil Cooler And Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only when replacing transmission oil cooler, modify oil pipe (1).

Release screw (2).

Remove clamp.

Release screw (3).

Tightening torque: 17 22 3AZ .

Remove and convert transmission oil line (1).

Replace sealing ring.

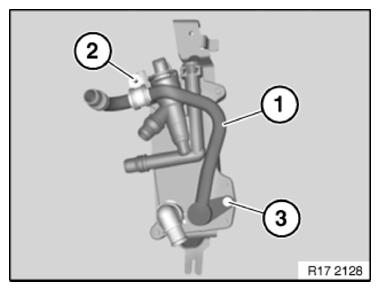

Fig 4: Screw, Clamp And Oil Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check FLUID LEVEL in automatic transmission. If necessary, top up automatic transmission fluid.
