17 21 010 Removing And Installing/Replacing Transmission Oil Cooler For Automatic Transmission (N55) AWD

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Remove FAN COWL .

Recycling

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable container.

Observe country-specific waste disposal regulations.

Release screws (1) on left and right from cover (3).

Tightening torque: 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque: 17 10 1AZ .

Lift out cover (3).

Fig 1: Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

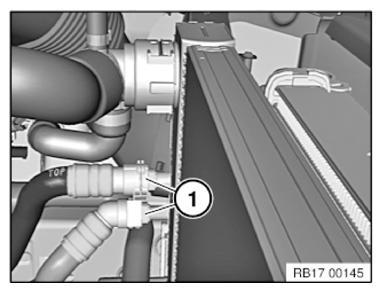

Unlock transmission oil lines (1) and detach.

Catch and dispose of escaping transmission oil in a suitable container.

Fig 2: Transmission Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

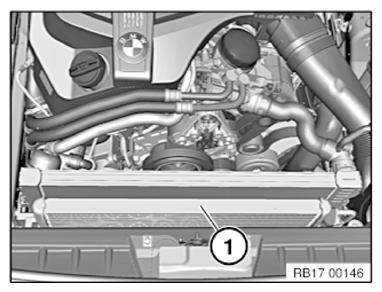

Remove transmission oil cooler (1), feed out towards top and remove.

Fig 3: Transmission Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check OIL LEVEL in automatic transmission. If necessary, top up automatic transmission oil.
