17 11 370 Removing And Installing/Replacing Cooling Loop For Hydraulic Steering (S63, B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: When carrying out repair work on the oil and cooling circuit, protect the alternator against dirt contamination.

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

Remove FAN COWL .

Release screws (1) on left and right from cover (3).

Tightening torque: 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque: 17 10 1AZ .

Lift out cover (3).

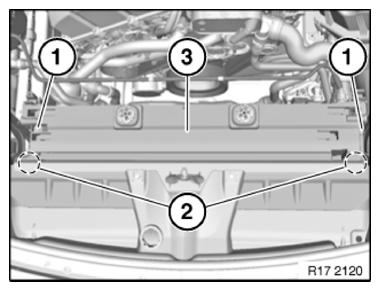

Fig 1: Sealing Lip Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlips (1).

Unlock lines (2) and (3) and detach from cooling loop.

IMPORTANT: Catch and dispose of emerging oil.

Installation note:

Reinstall circlips.

Fig 2: Circlips And Lines Of Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

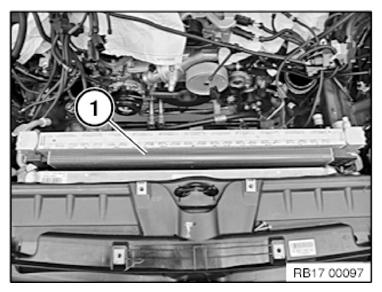

Lift out oil cooling loop (1).

Fig 3: Oil Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

After completing this repair work, check OIL LEVEL in oil reservoir of hydraulic steering and fill if necessary.

Reassemble the vehicle.

Check hydraulic steering for leak tightness.
