17 11 110 Removing And Installing/Replacing Electrical Machine Electronics Coolant Expansion Tank (N55 Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of scalding!
Only carry out repair work on the cooling system after the engine has cooled down!
Only carry out repair work on the cooling system after the engine has cooled down!
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:
The following points must be strictly observed prior to starting work:
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary tasks:
- FOLLOW instructions for repair work on the cooling system.
- Disconnect coolant hoses on expansion tank.

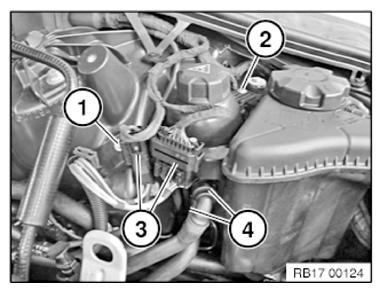

Release screws (1) and (2).
Tightening torque: 17 10 12AZ .
Release screw (2).
Release connector (3) from expansion tank.
Disconnect, unlock and pull off coolant hose (4).
Catch and dispose of escaping coolant.
Remove expansion tank.
Add coolant.
Check cooling system for tightness.
