17 11 100 Removing And Installing/Renewing Coolant Expansion Tank (N20 / N26)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

FOLLOW instructions for repair work on the cooling system.
Disconnect coolant hoses from expansion tank for coolant.

Slacken nut (1).

Release screw (2).

Remove heat shield (3).

Fig 1: Heat Shield, Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Lay filler neck (2) for windscreen washer fluid to one side.

Fig 2: Filler Neck And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

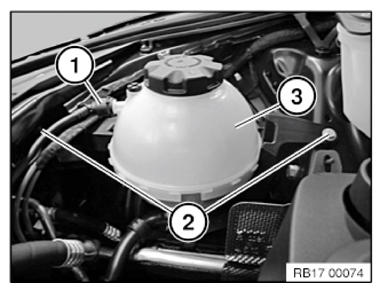

Unlock and disconnect plug on coolant level switch (1).

Unlock and detach coolant hose (1).

Unfasten screws (2).

Tightening torque: 17 10 3AZ .

Lift expansion tank (3) for coolant slightly until the coolant hose under the expansion tank is accessible.

Fig 3: Plug On Coolant Level Switch, Screws And Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

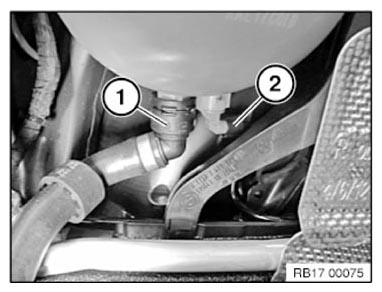

Unlock and detach coolant hose (1).

Unlock connector (2) and remove.

Remove coolant expansion tank.

Fig 4: Coolant Hose And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Fill the cooling system.
