17 11 035 Removing And Installing/Renewing Fan Cowl With Electric Fan (N20 / N26)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove CROSS CONNECTION .

Release coolant hose (1) from fan cowl.

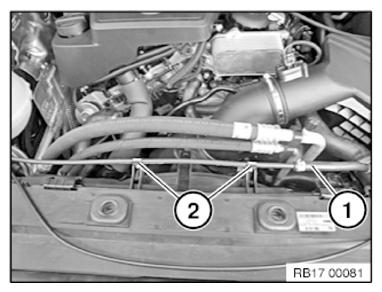

Fig 1: Coolant Hose And Fan Cowl

G09918191

Courtesy of BMW OF NORTH AMERICA, INC.

Only for vehicles with automatic transmission and four-wheel drive:

Release screw (1).

Tightening torque: 17 22 4AZ .

Pull off transmission oil cooler (2) in upward direction from fan cowl.

Fig 2: Transmission Oil Cooler Screw

G09918192

Courtesy of BMW OF NORTH AMERICA, INC.

Release coolant hose (1) from fan cowl.

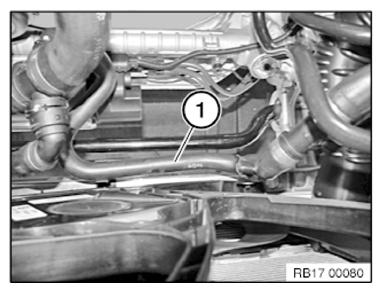

Fig 3: Coolant Hose

G09918193

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock and disconnect connectors (2) on fan cowl on right.

Release lock (3).

Feed out fan cowl upwards and remove.

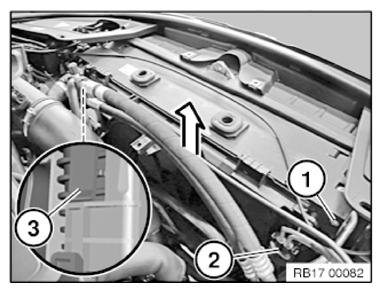

Fig 4: Screws, Connectors And Lock On Fan Cowl

G09918194

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

Fig 5: Retaining Tab

G04794056

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
