17 11 011 Removing And Installing Radiator For Electrical Machine Electronics (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:

Observe SAFETY INFORMATION for handling hybrid cars.

IMPORTANT: Wear safety goggles and protective gloves.

Necessary preliminary work:

Remove front BUMPER TRIM PANEL .
Remove the V-SUPPORT ON THE LEFT AND RIGHT .
Drain COOLANT FOR ELECTRICAL MACHINE ELECTRONICS .

Unlock all clips along the line (1).

Remove air duct (2) towards front.

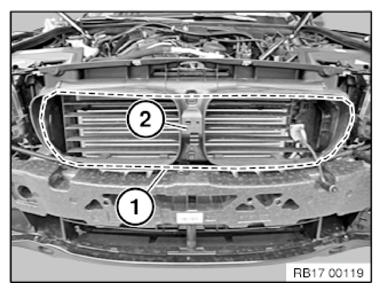

Fig 1: Air Duct And Clips

G09918180

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock clip (1) and remove air duct (2) towards front.

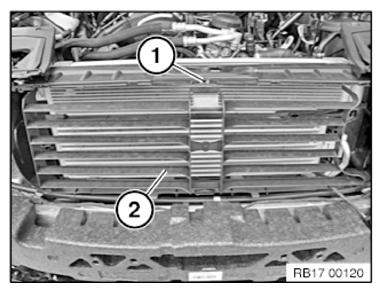

Fig 2: Clip And Air Duct

G09918181

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 17 10 11AZ .

Pull coolant line off radiator.

Replace sealing rings.

Unclip radiator (2) from the bracket, feed out and remove.

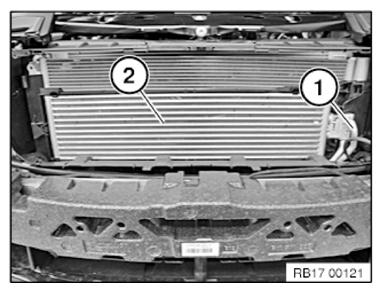

Fig 3: Radiator And Screw

G09918182

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check cooling system of electrical machine electronics for leaks.
