17 51 000 Removing And Installing/Replacing Charge Air Cooler (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:

Observe SAFETY INFORMATION for handling hybrid cars.

Necessary preliminary work:

Remove front UNDERBODY PROTECTION .

IMPORTANT: Coat sealing rings of snap fasteners with lubricant.
Pressure pipes cannot be fitted without lubricant.

Release screws (1).

Tightening torque: 17 10 2AZ .

Removing charge air cooler cover (2).

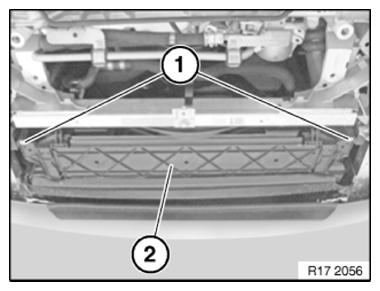

Fig 1: Charge Air Cooler Cover And Screws

G09876525

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock left charge air duct (1) on charge air cooler and detach.

Unlock charge air cooler (2) towards front from bracket.

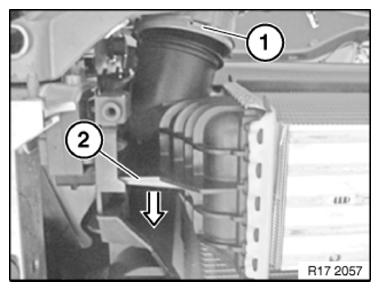

Fig 2: Unlocking Charge Air Cooler

G09876526

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock right charge air duct (1) on charge air cooler and detach.

Unlock charge air cooler (2) towards front from bracket.

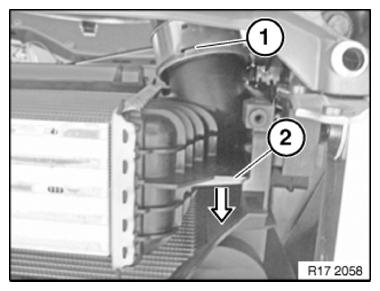

Fig 3: Unlocking Charge Air Cooler Front From Bracket

G09876527

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock charge air cooler (1) towards front from brackets and remove towards bottom.

Installation note:

Charge air hoses must audibly snap into place.

Coat sealing rings of charge air hoses with lubricant.

Pressure pipes cannot be fitted without lubricant.

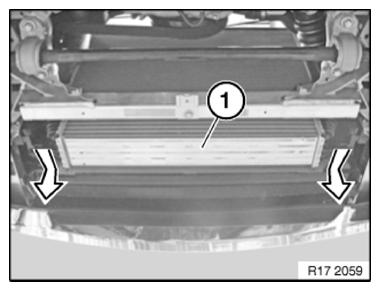

Fig 4: Unlocking Charge Air Cooler

G09876528

Courtesy of BMW OF NORTH AMERICA, INC.

Check charge air system for leaks.

Assemble engine.
