61 61 131 Replacing both wiper blades (Bosch AeroTwin)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not contact the windscreen without its wiper blade.

Necessary preliminary tasks:

Remove BOTH WIPER BLADES

Removal:

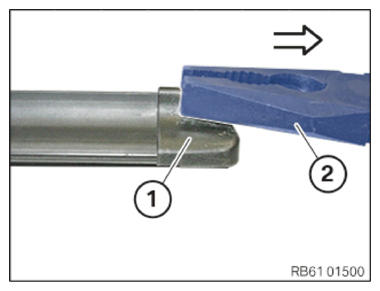

Pull off both sealing caps (1) using a suitable tool (2).

Fig 1: Pulling Both Sealing Caps Using Suitable Tool

G09929005

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not excessively bend the retaining tab (risk of breakage)!

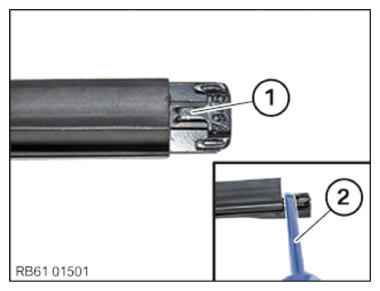

Slightly bend retaining tab (1) upwards using a suitable tool (2) until the wiper blade is easily accessible.

Fig 2: Identifying Bend Retaining Tab

G09929006

Courtesy of BMW OF NORTH AMERICA, INC.

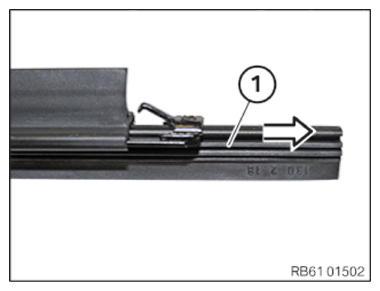

Pull out wiper blade (1) in the direction of the arrow.

Fig 3: Pulling Out Wiper Blade

G09929007

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

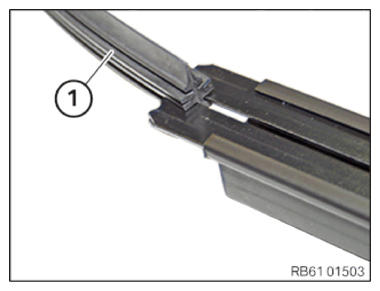

Insert wiper blade (1).

Fig 4: Inserting Wiper Blade

G09929008

Courtesy of BMW OF NORTH AMERICA, INC.

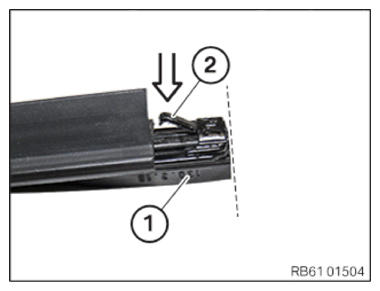

NOTE: Position wiper blade (1) flush.

Bend retaining tabs (2) in the direction of the arrow using a suitable tool.

Secure wiper blade (1).

Fig 5: Securing Wiper Blade

G09929009

Courtesy of BMW OF NORTH AMERICA, INC.

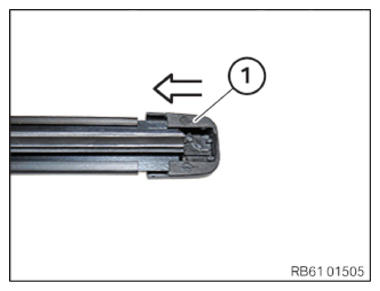

Push on sealing caps (1) until they noticeably engage.

Fig 6: Pushing Sealing Caps

G09929010

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install BOTH WIPER BLADES
